HAAS ST-25 ST25 CNC Turning Center Lathe Probing Very Low Hours Year 2014

Location: Oxnard, California

Availability: Immediate Sale

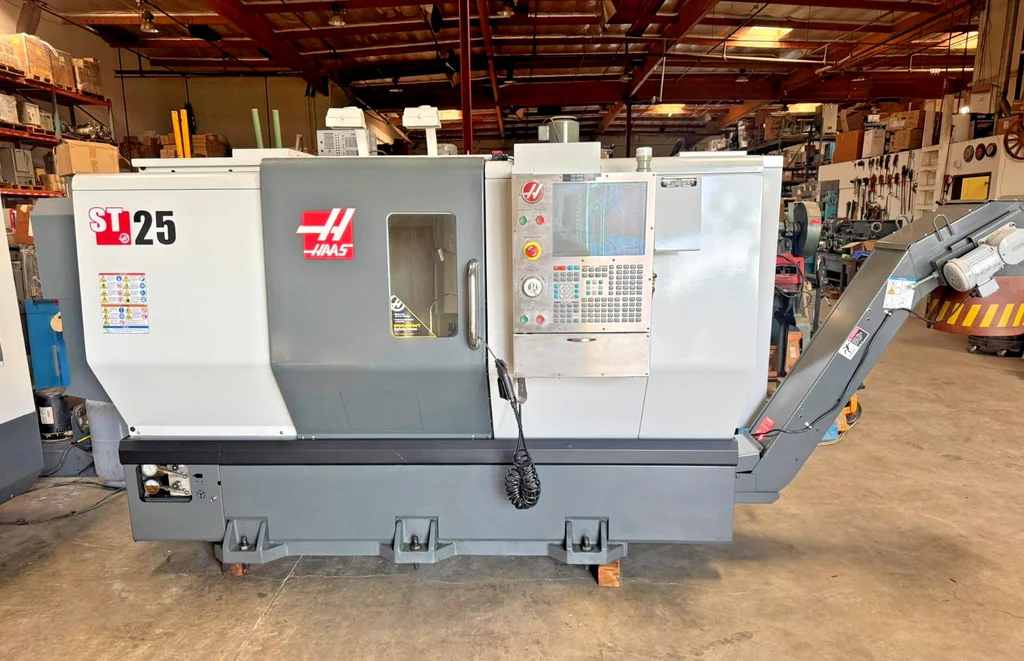

Increase turning capacity with this 2014 HAAS ST-25 CNC Turning Center equipped with a Renishaw Probing System and very low operating hours. The ST-25 is part of HAAS’s highly reliable ST Series lathes, built for precision turning, heavy cutting capability, and efficient production. With its large bar capacity and robust spindle, this machine is well suited for machining a wide range of parts in both short-run and high-volume production environments.

MACHINE OVERVIEW The HAAS ST-25 combines a powerful spindle with a rigid cast-iron construction to deliver consistent performance across a wide range of materials. Its large work envelope and integrated probing allow quick setup, improved part accuracy, and reduced cycle downtime.

PRODUCTION FEATURES: Renishaw probing system allows automated part setup and measurement. Large 3″ bar capacity enables efficient bar-fed production. Heavy-duty spindle design provides excellent torque for difficult materials. 12-station bolt-on turret allows fast tool indexing and versatile tooling configurations.

TECHNICAL SPECIFICATIONS
Model: HAAS ST-25
Year: 2014
Type: CNC Turning Center / Lathe
Max Turning Diameter: 15.5″
Max Turning Length: 21″
Chuck Size: 10″
Bar Capacity: 3″
Spindle Speed: 3,400 RPM
Spindle Motor: 30 HP
Spindle Nose: A2-6
Turret: 12-Station Bolt-On Turret
Rapid Rates (X/Z): 1,200 IPM

PERFORMANCE & PHYSICALS
Renishaw Probing System: Automated part setup and inspection capability
Max Swing Over Front Apron: 31.75″
Max Swing Over Cross Slide: 18.5″
Machine Dimensions: Approx. 130″ x 85″ x 75″
Machine Weight: Approx. 9,000 lbs
Power Requirement: 208-230V, 3-Phase

Note: Tooling and tool holders are not included unless otherwise specified. Buyer should confirm facility power requirements and ensure adequate floor load capacity prior to installation.
